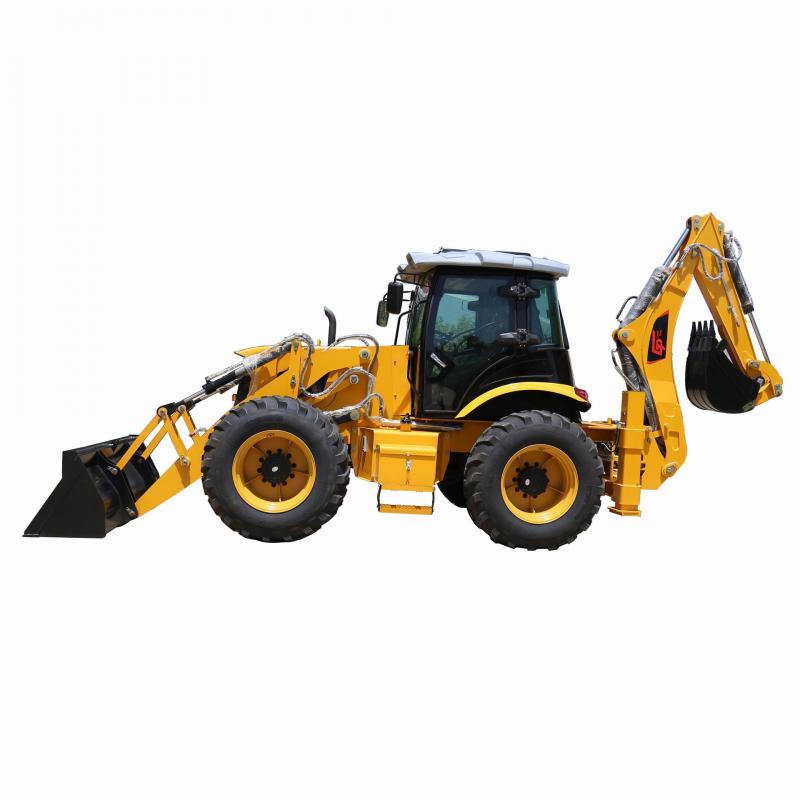

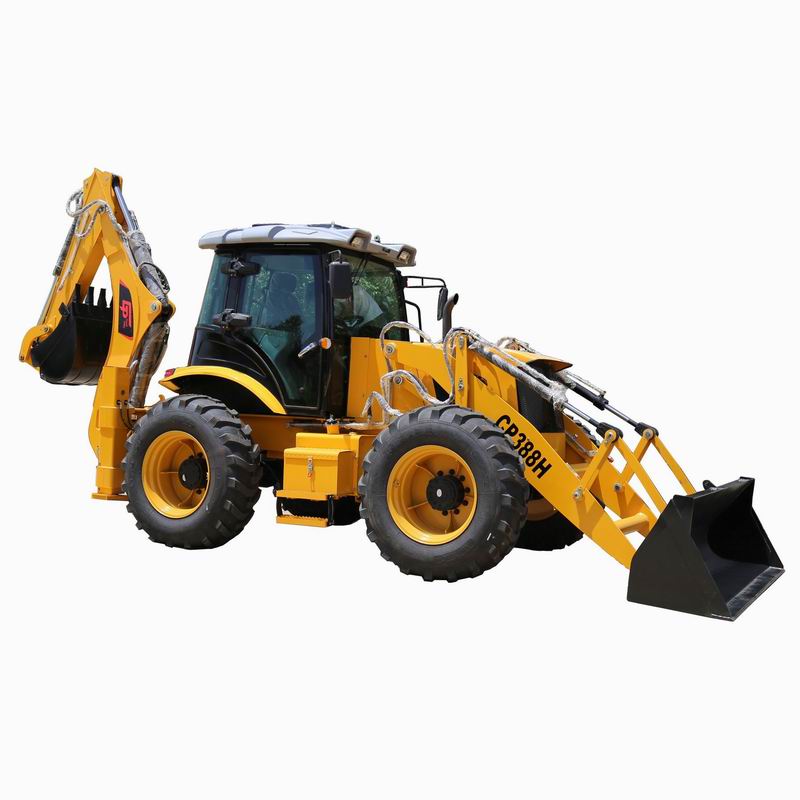

CPM388H Diesel backhoe loader

Diesel backhoe loader

Product Overview

CPM388H(4CX) Backhoe Loader Standard configuration: front shovel with bucket (2300mm wide), rear excavator with bucket (700mm wide), luxury tractor interior cab fan LED light large reflection window breaking hammer fire extinguisher sliding window sunroof warm air, luxury adjustable rotating seats, adjustable instrument panel, color LCD display screen, front shovel and rear excavator hydraulic pilot operation, Yuchai 91KW engine, front and rear 16 9-28 vacuum tires, specially designed 320 integral dual high low speed transmission, four-wheel drive, four-wheel steering, crab walking, three steering modes can be switched freely, H-shaped support legs

CONTACT US

Email:davidcp712@gmail.com

Tel:+0086-536 2100978

CP Machinery ALWAYS WITH YOU and stay up-to-date on upcoming promotions.

Product parameters

Here are the available machinery sizes and specs.

Find Machinery Size

CPM388H(4CX)

The Technical Parameter of CPM388H Backhoe Loader

l  Overall Dimension

1

Length(with bucket on ground)

6450mm

2

Overall width（at stabilizer ）

2500mm

3

Load Bucket width

2300mm

4

Height(To the top of the cab)

3120mm

5

Height(To the top of the digging pole)

3940mm

6

Wheel base

2335mm

7

Back wheel Tread

2139mm

l  Main Loading Technical Specification

1

Rated load

2800KG

2

Operating weight

8000KG

3

Rated bucket capacity

1.5m³

4

Max. dump clearance

2800mm


Optional Max. dump clearance

3100mm

5

Dump reach

870mm

6

Radius of turn（Outside of bucket）

5750mm

l  Main Digging Technical Specification

1

Rated digging bucket capacity

0.35m³（700mmwidth）

2

Max. digging depth

4000mm


Optional digging depth(telescopic digging boom)

5000mm-5500mm

3

Max. digging radius

5345mm

4

Max. dumping height

3740mm

5

Max. Digging Height

5470mm

6

Lifting force at Max. digging radius

1220kg

l  Diesel engine

1

Brand/Model

YUCHAI YCD4J22T-125

2

Type

In Line，Direct injection，Four-Stroke，Water Cooling

3

Rated output

91(KW)

4

Optional engine

YUCHAI 110KW YCD4J33T6-140

CUMMINS 4BT3.9-C100 or 4BT3.9-C125

CUMMINS EURO3 QSB3.9-C100 or QSB3.9-C125

EURO5 YUCHAI or EPA4 CUMMINS

l  Transmission System

1

　

Torque Converter

Model

320

Cooling type

Pressure oil circulating

2

Gearbox

Type

Synchromesh mechanical shift

3

Drive axle

Type

Four wheel drive

Four wheel steering

Crab walk

4

Gear shift position

4 F、 4 R

5

（F/R）km/h

F1，5km/h；F2，10km/h；

F3，18km/h；F进4，40km/h；

R1，5km/h；R2，10km/h；

R3，18km/h；R4，32km/h；

6

Size of tire

16.9-28

The hydraulic system

1

Working pump discharge

63ml/r

2

Working pump pressure

22Mpa

l  Oil Capacity

1

The hydraulic oil tank

125L

2

Diesel fuel tank

125L

Packing Quantity（1*45HC）

2Units






CPM388H(4CX) Backhoe Loader Standard configuration: front shovel with bucket (2300mm wide), rear excavator with bucket (700mm wide), luxury tractor interior cab fan LED light large reflection window breaking hammer fire extinguisher sliding window sunroof warm air, luxury adjustable rotating seats, adjustable instrument panel, color LCD display screen, front shovel and rear excavator hydraulic pilot operation, Yuchai 91KW engine, front and rear 16 9-28 vacuum tires, specially designed 320 integral dual high low speed transmission, four-wheel drive, four-wheel steering, crab walking, three steering modes can be switched freely, H-shaped support legs



CPM388H

CPM388H

CPM388H
