Type

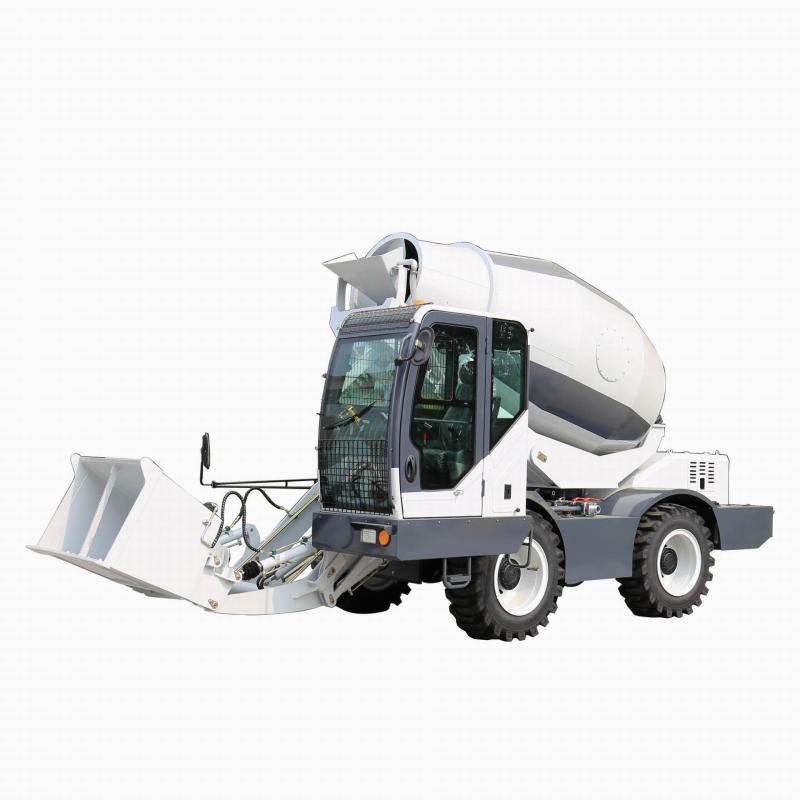

Integral frame chassis movable, self loading, mixing, transporting

Function

 concrete, sand,  fertilizer compound, wet or dry feed materias mixing and discharging

Productivity

BATCH≤15MINS,  4BATCHS(22CBM)/HOUR

Drive

4 x 4

Steering

Front steering

Engine

YUCHAI Engine: Four-Cylinder 2200RPM,110KW

Speed

High Speed: 38.5KM/H;  Low Speed:7.5KM/H

Gear number

Three forwards, three backwards

Fuel consumption

Idle state 2L-3L, working state 8L-10L.

Tyre

16/70－24 (Steel wire tyre)

Drum

Geometric volume 6.8 cubic meters, the best stirring 4.5-5.5 cubic meters

Spiral blade in tank

Double helix mixing, with the guide screw, so that the mixing material more uniform.Turn the feed left, turn the discharge right

Mixing tank 270°discharges

The tank rotates horizontally to 270 degrees.There is no dead Angle for discharging around the vehicle

Tipping Chute

Equipped with 2 chute for detachable to increase discharging length

Tilt of mixing tank

16°

Shovel

Shovel capacity: 0.72³

Bucket discharge switch

Hydraulic gate, electric control

Operation Handle

Electric control button four-way guide handle

Moving Hydraulic

Pump:DENGHONG

Torque converter（CloudPillar）

Work hydraulic

Pump/valve: DENGHONG

Mixing system

Speed Reducer:（CloudPillar）

Mixing motor（ZHENJIANG DALI）

Drive axle

LIUFENG

Water Supply

Hydraulic driving self-primiing pumps

High-Pressure Water Pump Wash

High-pressure water pump wash

Weighing system

Electronic weighing system (language optional）

Voltage

Battery 24V-100A 2 pieces

Hydraulic oil box

Tankage 180L, Summer:NO68 Hydraulic Oil, Winter:NO46 Hydraulic Oil, Very Cold Zone: NO35 Hydraulic Oil,

Water tank capacity

620L

Diesel tank capacity

190L

whole weight

Complete vehicle kerb mass  9200KG

Cab

Prevent falling objects cab

Adjustable steering wheel

Adjustable seat

Seat belts

Fire extinguisher

Astern image

Alarm Lamp

Standard configuration

Radio

Standard configuration

Cabin A/C

Optional

Escape hammer

Standard configuration

Astern sound prompt

Standard configuration

Walking control mode

Standard configuration：Electric control
