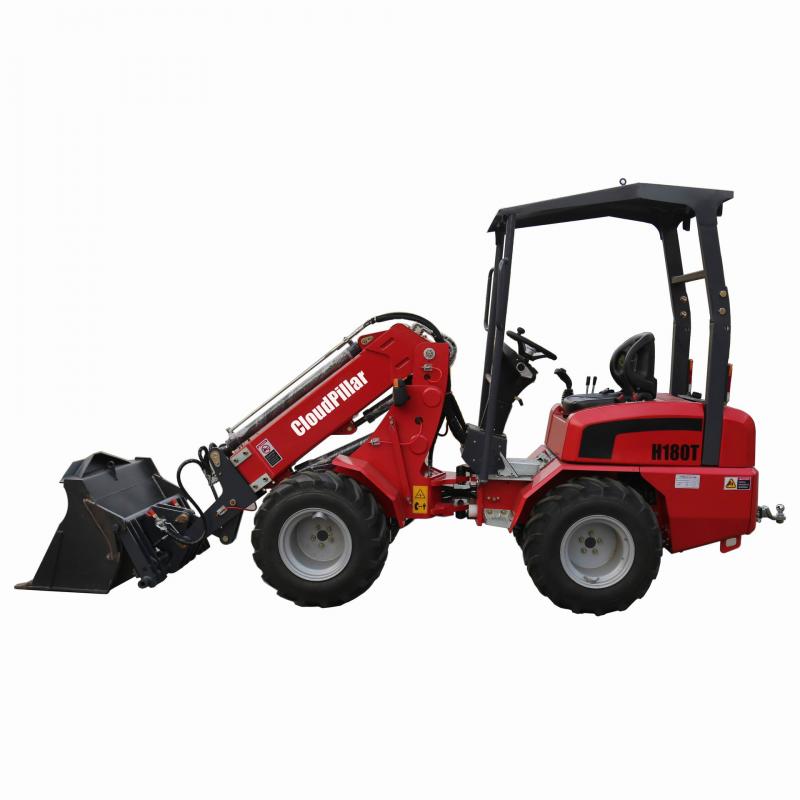

H180T telescopic loader

Product parameters

Here are the available machinery sizes and specs.

Find Machinery Size

H180T telescopic loader specifications

Rated Load

900kg

Bucket Capacity

0.3m3

Lifting Height of main boom

2959mm

Dumping Height of main boom( dumping angle 45°)

2051mm

Dumping reach of main boom

587mm

Max. Loading capacity of main boom

1000kg

Lifting height of small boom

3526mm

Dumping height of small boom (dumping angle 45°)

2618mm

Dumping reach of small boom

1085mm

Max. Loading capacity of small boom

600kg

Max. Speed(F1/R1)

12km/h

Max. Traction force

16.66KN

Max. Breakout Force

15KN

Digging Deep

65mm

Max. Gradeability

25°

Max. Turning angle

35°

Dimension and weight


Overall length (bucket on ground position)

3820mm

Overall width

1260mm

Overall Height

2310mm

Wheel base

1507mm

Tread

890mm

Min. Ground clearance

220mm

Net weight

2100kg

Engine


Engine model

3TNV88-G1

Type

Water cooled

Rated Power

19kw

Rated Speed

2200r/min

Max. Torque

98.7N.m

Speed at Max. Torque

1320r/min

Number of cylinders

3

Bore & stroke

88*90

displacement

1.642L

Rated fuel consumption

≤230

Option Engine

Euro5 or EPA4, Kubota

Transmission


Pump Pressure

28MPa

Axle

bevel gear reduction

Main drive reduction ratio

3.75

Driving

4 wheel drive

Tire

10.0/75-15.3

Steering System


Type

All hydraulic steering

System Pressure

16

Steering pump type

Gear pump

Steering diameter

63

Stroke

171

quantity

1

Braking System


1) Foot Brake


Type

Disc brake

Brake drum diameter

300

2) Hand brake (parking brake)


Type

Drum

Brake Drum Diameter

160/120

Working hydraulic system


Oil flow

13.8ml/r

Working pressure

16Mpa

Tilting cylinder diameter & stroke

ø80*318

Boom cylinder diameter & stroke

ø80*395

Voltage

12V

Battery model

6-QW-60B

Starter Type

Electric



Rated Load:900kg; Bucket Capacity:0 3m3; Lifting Height of main boom:2959mm; Dumping Height of main boom( dumping angle 45°):2051mm; Dumping reach of main boom:587mm; Max Loading capacity of main boom:1000kg; Lifting height of small boom:3526mm; Dumping height of small boom (dumping angle 45°):2618mm



H180T telescopic loader

H180T telescopic loader

H180T telescopic loader
