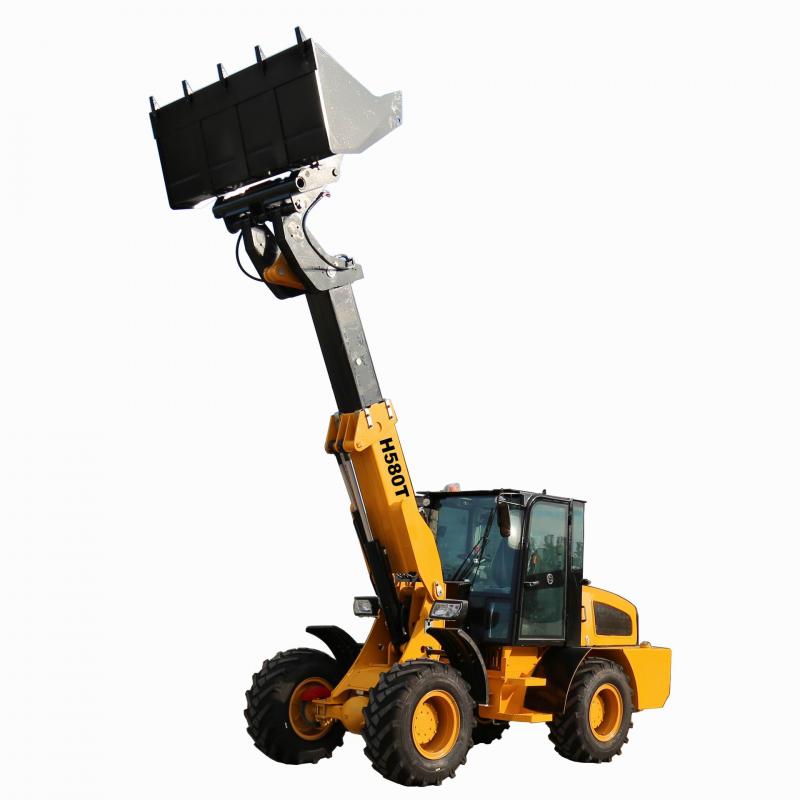

H580T telescopic loader

Product parameters

Here are the available machinery sizes and specs.

Find Machinery Size

Performance

Model

H580T


Rated loading

2500kg(Include bucket or accessories)


Operation weight

6500kg


Rated bucket capacity

1.2m³


Max. grade ability

30°


Min. ground clearance

360mm


Wheelbase

2460mm


Steering angle

45°


Max. dump height

4100mm


Dump distance

930mm


Overall dimension (L*W*H)

6600x2130x2680mm


Min. turning radius

4510mm


Track base

1570mm


Dumping angle

40°


Function of leveling automatic

Yes

Engine

Brand

YUNNEI YN38GBZ


Type

Vertical, in-line, water cooling, 4-cylinder, turbo type


Rated power

76KW


Optional engine

EU5 engine:CHANGCHAI or YUCHAI

EPA4 engine:KOLHER or CUMMINS

Transmission system

Torque converter

265


Gearbox mode

Counter shaft, Power-shift


Gear shift

4 forward,4 reverse


Max. speed

35km/h

Drive axle

Main reducing spiral

Circular Arc Bevel gear, single stage


Decelerating mode

Single stage planetary type

Hydraulic system

System working pressure

16Mpa


System flow

63ml/r

Brake system

Service brake

Hydraulic disc brake on 4 wheels


Parking brake

Flexible shaft operated external drum

Tyre

Tyre model

500/45-22.5 tire(16PR)


Width

500mm


Diameter

1030mm

Filling capacity

Diesel fuel tank

100L


Hydraulic tank

100L



Model:H580T; Rated loading:2500kg(Include bucket or accessories); Operation weight:6500kg; Rated bucket capacity :1 2m³; Max grade ability:30°; Min ground clearance:360mm; Wheelbase :2460mm; Steering angle:45°; Max dump height:4100mm
