Engine Brand Model:WEICHAI WP6G175E22; Engine power:129KW; Number of cylinders:6; Cooling way:Water cooling; Engine type:Electronic Unit Injector Engine;
Email:davidcp712@gmail.com
CP Machinery ALWAYS WITH YOU and stay up-to-date on upcoming promotions.

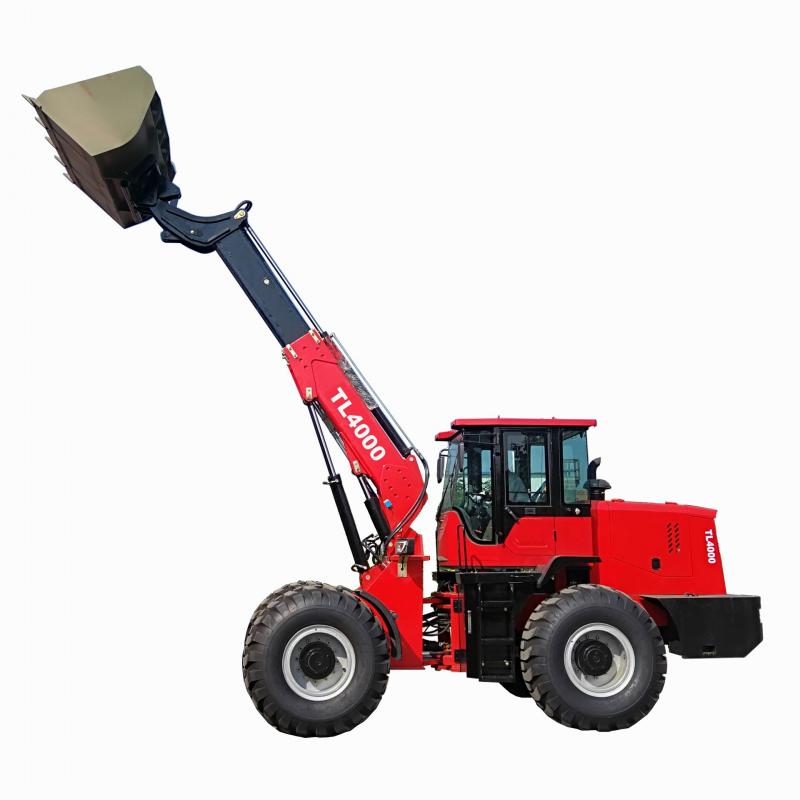

Model | TL4000 | |
Engine Details
| Engine Brand/Model | WEICHAI/ WP6G175E22 |
Engine power | 129KW | |
Number of cylinders | 6 | |
Cooling way | Water cooling | |
Engine type | Electronic Unit Injector Engine | |
Bucket
| Bucket Capacity | 2m³ |
Bucket width | 2300mm | |
Bucket type | Heavy-duty teeth | |
Overall Dimensions
| Overall Length | 7800mm |
Overall Height | 3230mm | |
Overall Width | 2300mm | |
Tyre轮胎 | Standard Model | G2 pattern 20.5-25 Tyre G2 |
Transmission System | Hydraulic converter + gearbox+drive shaft + hub reduction axles | |
Brake System
| Service Brake | Four Wheel Disk brake |
Parking Brake | Hand operated | |
Braking Type | Air Brake | |
Max. bucket lift height | 6600mm | |
Max.bucket unloading | 5300mm | |
Inner arm extension length | 1500mm | |
Lifting to bucket hinge pin height | 6000mm | |
Optional lifting to bucket hinge pin height | 7000mm | |
Steering System | Articulated hydraulic steering | |
Driving System | Four wheel drive | |
Hydraulic quick release | Yes | |
Hydraulic pilot joystick | Yes | |
Steady rise | Yes | |
Max. Load | 4000kg including bucket or attachment | |
Wheelbase | 2845mm | |
Track | 1825mm | |
Speed | 0-38km/H | |
Weight | 10000kg(with bucket) | |
System Pressure | 19Mpa | |
Hydraulic Output | 184L/min | |
Fuel Tank Capacity | 175L | |
Engine Brand Model:WEICHAI WP6G175E22; Engine power:129KW; Number of cylinders:6; Cooling way:Water cooling; Engine type:Electronic Unit Injector Engine;
