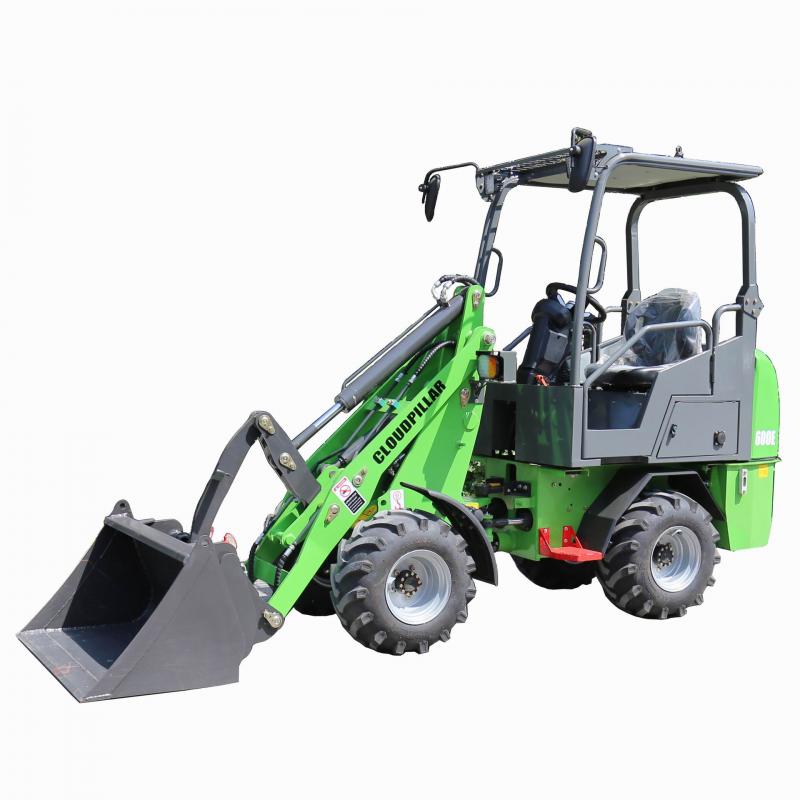

Rated Load（t):0 6; Bucket rated capacity（m)³ :0 3; Dumping height（mm) （at 45°）:1780; Lifting Height（mm):3140; Dumping Reach（mm):980; Max Lifting weight（kg）:600;
Email:davidcp712@gmail.com
CP Machinery ALWAYS WITH YOU and stay up-to-date on upcoming promotions.
Performance | Rated Load（t) | 0.6 | |
Bucket rated capacity（m)³ | 0.3 | ||
Dumping height（mm) | 1780 | ||
Lifting Height（mm) | 3140 | ||
Dumping Reach（mm) | 980 | ||
Max. Lifting weight（kg） | 600 | ||
Max. Excavation Force（kn) | 1000 | ||
Max. Grade ability | 30° | ||
Max. Turning Angel | 30°±1 | ||
Swing degree of the rear axle | 7° | ||
Dimensions. &.Weight | Overall length（Bucket on Ground position）mm | 3840 | |
Bucket width（overall width） | 1160 | ||
Overall Height(mm) | 2330 | ||
Wheel base(mm) | 850 | ||
Min Ground Clearance(mm) | 240 | ||
Net Weight（kg) | 1980kg | ||
Battery | Battery Model No. | 6-EVF-203A | |
rated capacity（3hr) | 200Ah | ||
No.of battery groups | 12 | ||
Rated Voltage | 72V | ||
Working hours（h） | 4-5h | ||
Transmission System | Hydraulic System | Motor No. | CBHV |
Voltage | 72V | ||
Power | 5000W | ||
Displacement（ml/r) | 18 | ||
Tyres | Type | 26*1200-12 | |
working pressure（mpa) | 0.3 | ||
Qty | 4 | ||
Steering System | Type of Steering Hydraulic System | Full Hydraulic Steering System | |
System Pressure（mpa) | 16 | ||
Type of Steering Pump | External Gear Pump | ||
Steering Cylinder Bore（mm) | 63 | ||
Qty（pc） | 1 | ||
Braking System | Service Brake | Drum Brake | |
Brake Drum（mm) | 250 | ||
Parking Brake | Drum Brake | ||
Distribution Valve | Model | DL10 | |
Type | Triple valve stem | ||
Dumping Cylinder-Bore | Ø80 | ||
Lifting Cylinder-Bore | Ø63 | ||
Oil Capacity | Hydraulic Oil Tank（L) | 30 | |
Brake Fluid（L) | 0.8 | ||
Rated Load（t):0 6; Bucket rated capacity（m)³ :0 3; Dumping height（mm) （at 45°）:1780; Lifting Height（mm):3140; Dumping Reach（mm):980; Max Lifting weight（kg）:600;
